Hot Insulation Materials for Steam Pipes
Steam piping systems are widely used in industrial facilities, power plants, chemical plants, refineries, food processing plants, and HVAC heating systems. These pipes carry high-temperature steam that can exceed 200°C to 500°C, depending on the application.
Without proper insulation, steam pipes can lose significant heat energy, leading to reduced system efficiency and increased operating costs.
This is where hot insulation materials for steam pipes become essential. These insulation materials are specifically designed to withstand high temperatures and minimize heat loss.
Steam pipe insulation helps achieve several important objectives:
-
Reduce heat loss
-
Improve energy efficiency
-
Protect workers from burns
-
Prevent condensation
-
Maintain system temperature stability
This comprehensive guide explains the different types of hot insulation materials used for steam pipes, their properties, advantages, and installation methods.
Why Steam Pipe Insulation is Important
Steam pipe insulation plays a critical role in maintaining system efficiency and safety.
Heat Loss Prevention
Uninsulated steam pipes lose large amounts of heat to the surrounding environment.
Insulation helps retain heat within the pipe.
Energy Efficiency
Reducing heat loss lowers energy consumption and fuel costs.
Worker Safety
Insulated pipes reduce surface temperatures and prevent accidental burns.
Condensation Control
Proper insulation prevents condensation that can lead to corrosion.
Temperature Stability
Insulation helps maintain consistent steam temperature throughout the system.
Temperature Ranges in Steam Pipe Systems
Steam pipes operate at various temperature levels depending on the application.
| Steam Type | Temperature Range |
|---|---|
| Low Pressure Steam | 100°C – 150°C |
| Medium Pressure Steam | 150°C – 300°C |
| High Pressure Steam | 300°C – 500°C |
Insulation materials must withstand these high temperatures without degradation.
Types of Hot Insulation Materials for Steam Pipes
Several insulation materials are commonly used for steam pipe systems.

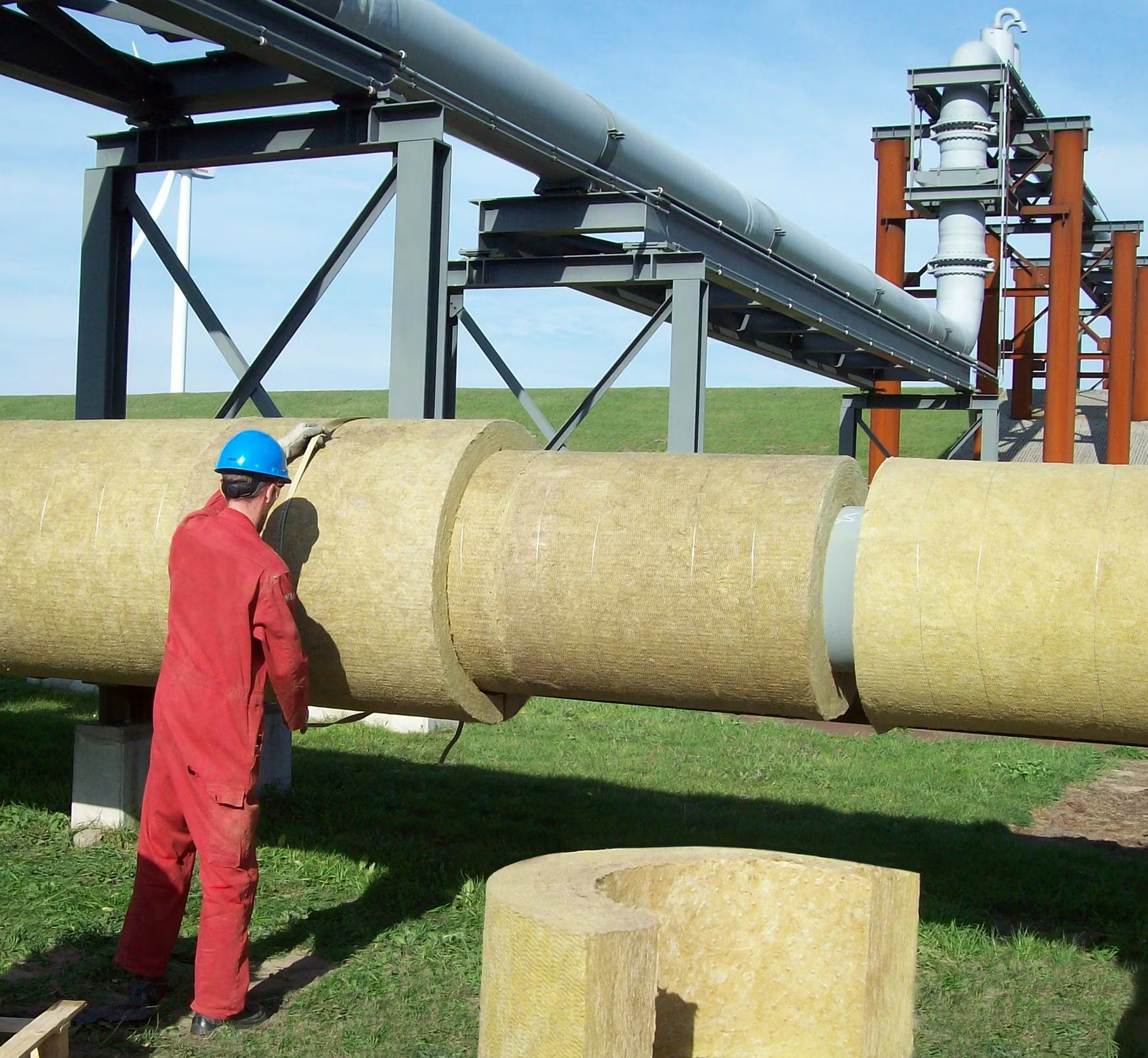

Mineral Wool Insulation
It is made from natural rock or slag that is melted and spun into fibers.
Key Properties
-
High temperature resistance
-
Excellent thermal insulation
-
Fire-resistant material
-
Good sound absorption
Advantages
- Withstands temperatures up to 650°C
- Non-combustible material
- Durable and long-lasting
Applications
Mineral wool insulation is commonly used in:
-
Steam pipelines
-
Boilers
-
Industrial heating systems
Fiberglass Insulation
Fiberglass insulation is another popular material used for steam pipe insulation.
It is made from fine glass fibers and provides excellent thermal resistance.
Key Properties
-
Lightweight insulation material
-
Good thermal resistance
-
Non-combustible
Advantages
- Easy to install
- Cost-effective insulation solution
- Good moisture resistance
Temperature Range
Fiberglass insulation can withstand temperatures up to 450°C.

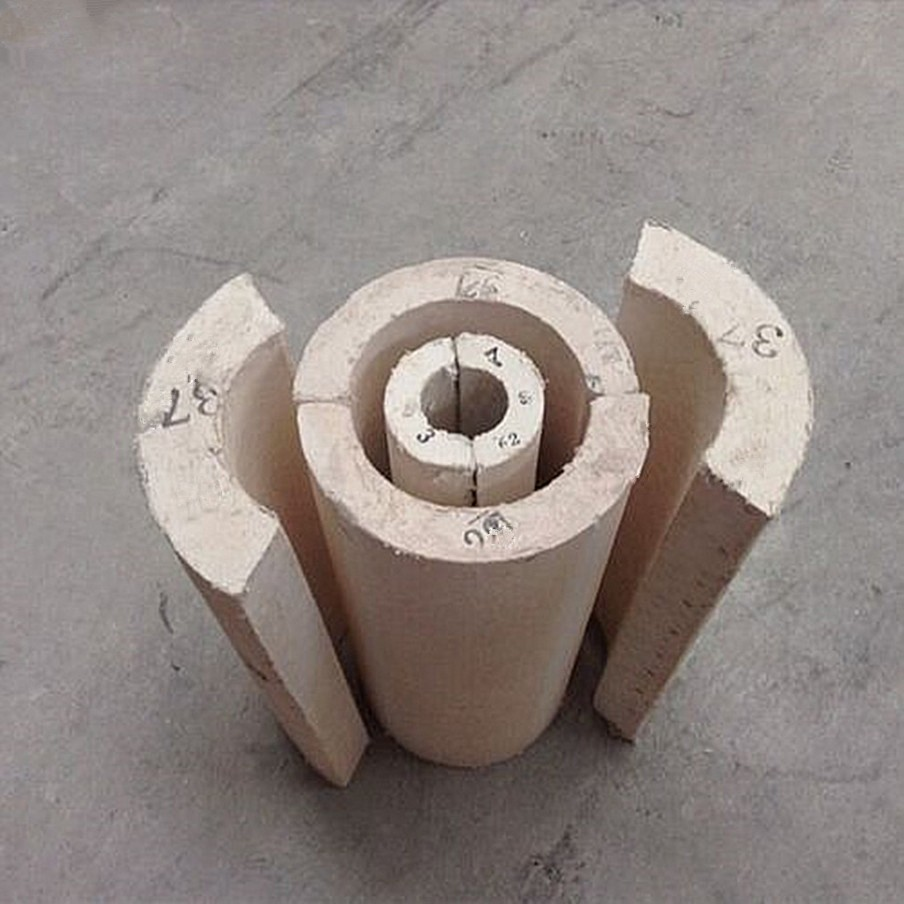

Calcium Silicate Insulation
It is made from calcium silicate compounds and reinforced fibers.
Key Properties
-
High compressive strength
-
Excellent thermal resistance
-
Low thermal conductivity
Advantages
- Withstands temperatures up to 1000°C
- Durable insulation material
- Resistant to moisture and corrosion
Applications
Calcium silicate is commonly used in:
-
Power plants
-
Refineries
-
Industrial steam systems

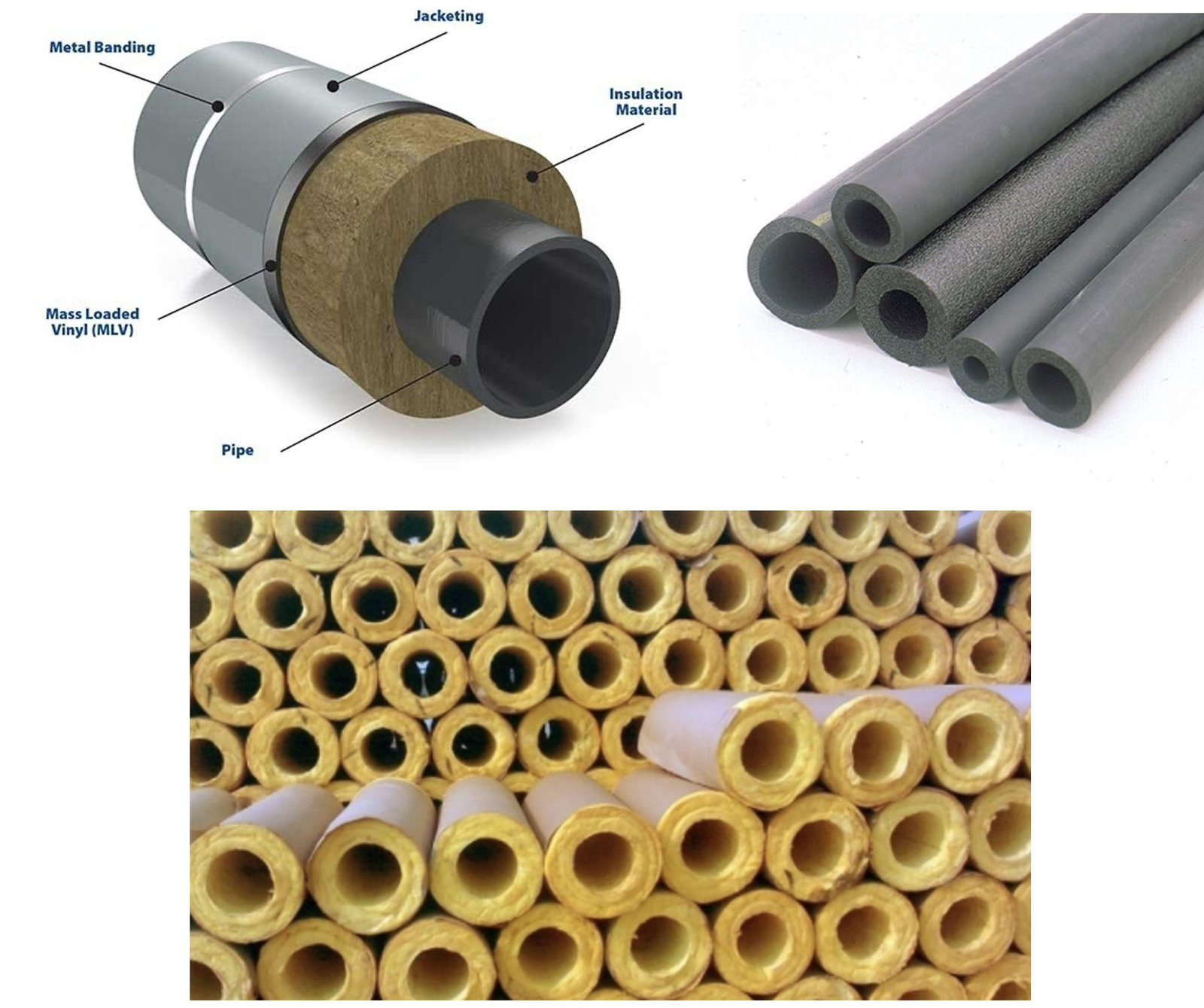

Ceramic Fiber Insulation
Ceramic fiber insulation is used for extremely high-temperature applications.
It is made from alumina-silica fibers that provide excellent thermal resistance.
Key Properties
-
Very high temperature resistance
-
Low thermal conductivity
-
Lightweight insulation material
Advantages
- Withstands temperatures up to 1200°C
- Excellent heat retention
- Resistant to thermal shock
Applications
Ceramic fiber insulation is commonly used in:
-
High-temperature furnaces
-
Industrial boilers
-
Power plants
Thermal Conductivity of Insulation Materials
Thermal conductivity measures how well a material conducts heat.
Lower thermal conductivity means better insulation performance.
Typical values include:
| Material | Thermal Conductivity |
|---|---|
| Mineral Wool | 0.035–0.045 W/mK |
| Fiberglass | 0.030–0.040 W/mK |
| Calcium Silicate | 0.050–0.060 W/mK |
| Ceramic Fiber | 0.020–0.030 W/mK |
Ceramic fiber offers the best insulation performance.
Steam Pipe Insulation Thickness
The thickness of insulation depends on:
-
Pipe diameter
-
Steam temperature
-
Ambient temperature
-
Heat loss requirements
Typical insulation thickness ranges from 25 mm to 100 mm.
Steam Pipe Insulation Installation Process
Proper installation ensures maximum insulation performance.
Step 1: Surface Preparation
Clean the pipe surface before installing insulation.
Step 2: Insulation Placement
Install insulation material around the pipe.
Step 3: Securing Insulation
Use metal bands or wire to secure insulation.
Step 4: Protective Cladding
Apply aluminum or steel cladding for protection.
Steam Pipe Cladding Materials
Cladding protects insulation from damage and environmental exposure.
Common cladding materials include:
-
Aluminum sheets
-
Stainless steel sheets
-
Galvanized steel
Cladding improves durability and weather resistance.
Benefits of Steam Pipe Insulation
Steam pipe insulation provides several advantages.
Energy Savings
Reducing heat loss lowers fuel consumption.
Improved Safety
Insulation reduces pipe surface temperature.
Equipment Protection
Prevents corrosion and condensation.
Environmental Benefits
Lower energy consumption reduces emissions.
Common Problems Without Pipe Insulation
Uninsulated steam pipes can cause several issues.
Excessive Heat Loss
Energy waste increases operating costs.
Worker Safety Risks
Hot pipe surfaces can cause burns.
Condensation Problems
Moisture buildup leads to corrosion.
Maintenance of Steam Pipe Insulation
Regular inspection helps maintain insulation performance.
Maintenance tasks include:
- Inspect insulation for damage
- Repair cracks or gaps
- Replace damaged insulation
- Inspect cladding materials
Proper maintenance extends insulation lifespan.
How to Choose the Best Steam Pipe Insulation Material
Selecting the right insulation material depends on several factors.
Operating Temperature
Higher temperatures require advanced insulation materials.
Moisture Resistance
Industrial environments may require moisture-resistant insulation.
Mechanical Strength
High-pressure systems require durable insulation materials.
Cost
Budget considerations may influence material selection.
Applications of Steam Pipe Insulation
Steam pipe insulation is used in many industries.
Common applications include:
-
Power plants
-
Chemical plants
-
Oil refineries
-
Food processing facilities
-
HVAC heating systems
These systems rely on insulation to maintain efficiency.
Frequently Asked Questions
What is the best insulation material for steam pipes?
Mineral wool, fiberglass, calcium silicate, and ceramic fiber are commonly used for steam pipe insulation.
Why is insulation important for steam pipes?
Insulation reduces heat loss, improves energy efficiency, and protects workers from hot surfaces.
What temperature can mineral wool insulation withstand?
Mineral wool insulation can withstand temperatures up to 650°C.
What is the most heat-resistant insulation material?
Ceramic fiber insulation can withstand temperatures up to 1200°C.
How thick should steam pipe insulation be?
Typical insulation thickness ranges from 25 mm to 100 mm, depending on pipe size and operating temperature.
Conclusion
Hot insulation materials play a crucial role in maintaining the efficiency and safety of steam piping systems. Materials such as mineral wool, fiberglass, calcium silicate, and ceramic fiber provide excellent thermal resistance and protect industrial systems from excessive heat loss.
Proper insulation not only improves energy efficiency but also enhances worker safety and protects equipment from damage. Selecting the right insulation material depends on operating temperature, environmental conditions, and system requirements.
With proper installation and maintenance, steam pipe insulation can significantly improve the performance and longevity of industrial steam systems.
